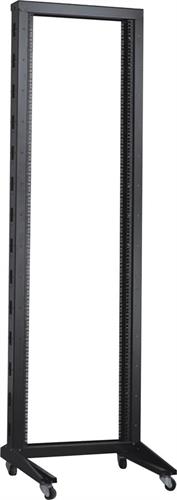

NS type data racks

  • Model NO.: NS type
  • Modular design, easy mounting, low-cost, easy disassemble, delivery and assemble; various       optional accessories according to requirement (cable slot, cable management, removable working panel etc)
  • Applied range: it is widely used in computer network system, university education equipment, broadcasting system and communication system and more; It suits to put sophisticated computer and electronic equipment
  • Static loading: 150kg
  • Surface treatment: degreasing, pickling, phosphorescence, ablution, powder coating
  • Products configuration:
    Material: SPCC: cold rolled quality steel
    1: Colum: 1.5mm, 2pcs
    2: TOP and bottom cover: 1.5mm, 1pc
    3: Bottom: 1.5mm
    4: Castor 4pcs
    5: Screw and buckled, 20 sets
    Order information:
    NS6622: 22U 600x600x1185mm,  flat packing volume: 0.019CBM
    NS6632: 32U 600x600x1625mm,  flat packing volume: 0.026CBM
    NS6637: 37U 600x600x1850mm,  flat packing volume: 0.030CBM
    NS6642: 42U 600x600x2070mm,  flat packing volume: 0.034CBM
    NS6647: 47U 600x600x2295mm,  flat packing volume: 0.037CBM
    Color:
    Black (RAL9005)=B
    Gray ( RAL7035)=G
