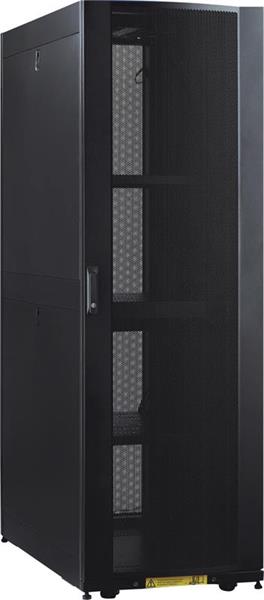

NA type network cabinet
Model NO.:
NA type
NA is a high performance rack cabinet
It plays a vital role in the equipment roomor office
Front and back door are high density vented for good ventilation
Applied in the financial, securities, data center, machine room, specially designed for the server, which can
provide good performance and stable equipment working environment
ANSI/EIAR-310-D, DIN41491, EC297-2DIN41494 and DART7 GB/T3047-92 standard
Compatible with 19 international standard, metric system and EISI standard
Reliable structure, large static loading capacity: 800kg
Surface treatment: degreasing, pickling, phosphorescence, ablution and powder coating
Side door has the upper and lower sections, which can be opened and locked independently,
convenient for construction and maintenance, sides of rear have multifunctional cable management
Several cable entries at the top and bottom can be closed
Mounting bracket has scale marks to help mount device accurately
With cabinet fittings, convenient for cabinet combine and separate use
Advanced cabinet door lock
Optional mounting chassis, achieve requirements of fixing the cabinets, entry at the bottom,
cold wind blowing and rat proofing
High density vented door for good ventilation and reliable operation
Surface treatment: degreasing, pickling, phosphorescence and ablution
Products configuration:
Material: cold rolled quality steel
Top cover: 1.2mm
Side door: 1.0mm
Front door: 1.5mm
Back door: 1.2mm, 2 pieces
Column: 1.5mm
Cable management bar: 1.5mm
Beam: 1.5mm, 2 pieces
Frames: 2.0mm, 6 pieces
Fixed board: 2.0mm, 2 pieces
Castor: 4 pieces
M12 fee: 4 pieces
M6 screw and nuts: 40 sets
NA6825: 25U, 600x800x1235mm, flat packing: 0.268cbm
NA6125: 25U, 600x1000x1235mm, flat packing: 0.293cbm
NA6842: 42U, 600x800x1991mm, flat packing: 0.419cbm
NA6142: 42U, 600x1000x1991mm, flat packing: 0.438cbm
NA6848: 48U, 600x800x2258mm, flat packing: 0.477cbm
NA6148: 48U, 600x1000x2258mm, flat packing: 0.499cbm
NA7125: 25U, 700x800x1235mm, flat packing: 0.268cbm
NA6142: 42U, 700x1000x1991mm, flat packing: 0.293cbm
NA7148: 48U, 700x1000x2258mm, flat packing: 0.419cbm
Colors:
Black (RAL9005)=B
Gray ( RAL7035)=G
