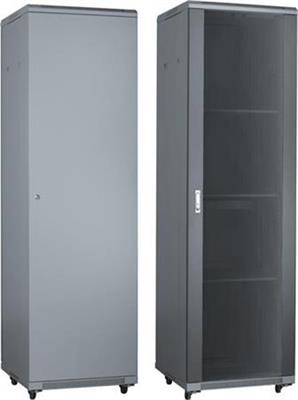

NP type network cabinet

  • Model NO.: NP type
  • NP is a high performance rack cabinet
  • It plays a vital role in the equipment room and office
  • Cold rolled steel sheet frame, side door, top and back door, front tempered glass door
  • Side door can be locked
  • A pair of adjustable columns make it fit for different depth (600/800 and 1000mm) equipment
  • 19-inch electricity and information system design used for different equipment
  • It is applied in the financial, securities, data center, machine room, specially designed for the server,       which can provide good performance and stable equipment working environment
    • NP6618: 18U, 600x600x988mm, flat packing: 0.227cbm
    • NP6622: 22U, 600x600x1166mm, flat packing: 0.261cbm
    • NP6822: 22U, 600x800x1166mm, flat packing: 0.277cbm
    • NP6627: 27U, 600x600x1388mm, flat packing: 0.305cbm
    • NP6827: 27U, 600x800x1388mm, flat packing: 0.321cbm
    • NP6632: 32U, 600x600x1610mm, flat packing: 0.386cbm
    • NP6832: 32U, 600x800x1610mm, flat packing: 0.413cbm
    • NP6637: 37U, 600x600x1833mm, flat packing: 0.436cbm
    • NP6837: 37U, 600x800x1833mm, flat packing: 0.464cbm
    • NP6137: 37U, 600x1000x1833mm, flat packing: 0.501cbm
    • NP6642: 42U, 600x600x2055mm, flat packing: 0.485cbm
    • NP6842: 42U, 600x800x2055mm, flat packing: 0.514cbm
    • NP6142: 42U, 600x1000x2055mm, flat packing: 0.553cbm
    • NP6647: 47U, 600x600x2277mm, flat packing: 0.534cbm
    • NP6847: 47U, 600x800x2277mm, flat packing: 0.565cbm
    • NP6147: 47U, 600x1000x2277mm, flat packing: 0.607cbm
    • NP8837: 37U, 800x800x1833mm, flat packing: 0.616cbm
    • NP8842: 42U, 800x800x2055mm, flat packing: 0.682cbm
    • NP8142: 42U, 800x1000x2055mm, flat packing: 0.704cbm
    • NP8847: 47U, 800x800x2277mm, flat packing: 0.750cbm
    • NP8147: 47U, 800x1000x2277mm, flat packing: 0.772cbm
    • Colors:
      • Black (RAL9005)=B
      • Gray (RAL7035)=G
