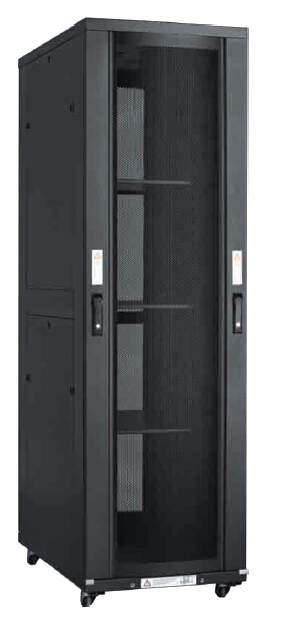

NC type network cabinet
Model NO.:
NC type
NC is a high performance rack cabinet
It plays a vital role in the equipment room and office
Front and back door are vented doors for good ventilation
Side door can be locked
A pair of adjustable columns makes it fit for different depth (600/800 and l000mm) equipment
ANSI/EIAR-310-D, DIN41491, EC297-2DIN41494 and DART7 GB/T3047-92 standard
Compatible with 19 international standard, metric system and EISI standard
Reliable structure, the large static loading capacity: 800kg
Elegant appearance, a new design of the server rack embodies the ability of management the server more
Front left and right door has advanced lock
Door can be opened by left direction or right direction
Front of the chassis has mounting hole
Optional fixed bracket can fix the cabinet firmly
Good compatibility, can adapt to more server, perfect ventilation design
Side door lock is optional
Conveniently detachable side doors, front and back door, to operate all-round, observe multidirectional
Products configuration:
Material: cold rolled quality steel
Top cover: 1.2mm, 1 piece
Bottom: 1.2mm, 1 piece
Fan plate (with 4 fans): 1.2mm, 1 piece
Frame: 1.2mm, 2 pieces
Front door: 1.2mm, 1 piece
Left back door: 1.2mm, 1 piece
Right back door: 1.0mm, 1 piece
Side door: 1.2mm, 4 pieces
Beam: 1.2mm, 2 pieces
Horizontal bracing: 2.0mm, 6 pieces
Column: 1.2mm, 4 pieces
Baffle: 2.0mm, 3 pieces
Fixed support: 2 pieces
Castor: 4 pieces
M12 feet: 4 pieces
Screw nut buckled: 40 sets
6 power outlet: 1 piece
NC6837: 37U, 600x600x1833mm, flat packing: 0.464cbm
NC6137: 37U, 600x1000x1833mm, flat packing: 0.501cbm
NC6842: 42U, 600x800x2055mm, flat packing: 0.514cbm
NC6142: 42U, 600x1000x2055mm, flat packing: 0.553cbm
NC6847: 47U, 600x800x2277mm, flat packing: 0.565cbm
NC6147: 47U, 600x1000x2277mm, flat packing: 0.607cbm
NC8837: 37U, 800x800x18330mm, flat packing: 0.616cbm
NC8842: 42U, 800x800x2055mm, flat packing: 0.682cbm
NC8142: 42U, 800x1000x2055mm, flat packing: 0.704cbm
NC8847: 47U, 800x800x2277mm, flat packing:0.750cbm
NC8147: 47U, 800x1000x2277mm, flat packing: 0.772cbm
​Colors:
Black (RAL9005)=B
Gray ( RAL7035)=G
