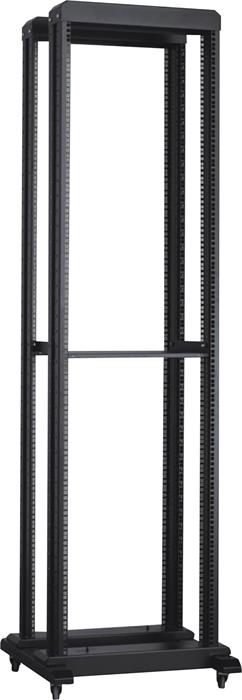

ND type double data racks

  • Model NO.: ND type
  • modular design, easy mounting, low-cost, easy disassemble, delivery and assemble; various optional accessories according to requirement (cable slot, cable management, removable working panel etc)
  • Applied range:
    • It is widely used in computer network system, university education equipment, broadcasting system and communication system and more
    • It suits to put sophisticated computer and electronic equipment
  • Loading:
    • Static loading: 150kg
  • Surface treatment:
    • Degreasing, pickling, phosphorescence, ablution, powder coating
  • Products configuration:
  • Material:
    • SPCC: cold rolled quality steel
  • Top: 1.0mm, 2pcs
  • Frame: 2.0mm 2pcs
  • Bottom: 2.0mm 2pcs
  • Baffle plate: 1.2mm 1pc
  • Castor: 4pcs
  • Feet: 4pcs
  • Screw and buckled, 20 sets
  • Wrench: 1pc
Order information:
ND6622: 22U 600x600x1187mm,  flat packing volume: 0.174CBM
ND6632: 32U 600x600x1631mm,  flat packing volume: 0.242CBM
ND6637: 37U 600x600x1854mm,  flat packing volume: 0.276CBM
ND6642: 42U 600x600x2076mm,  flat packing volume: 0.311CBM
ND6647: 47U 600x600x2298mm,  flat packing volume: 0.344CBM
Color:
  • Black (RAL9005)=B
  • Gray ( RAL7035)=G
