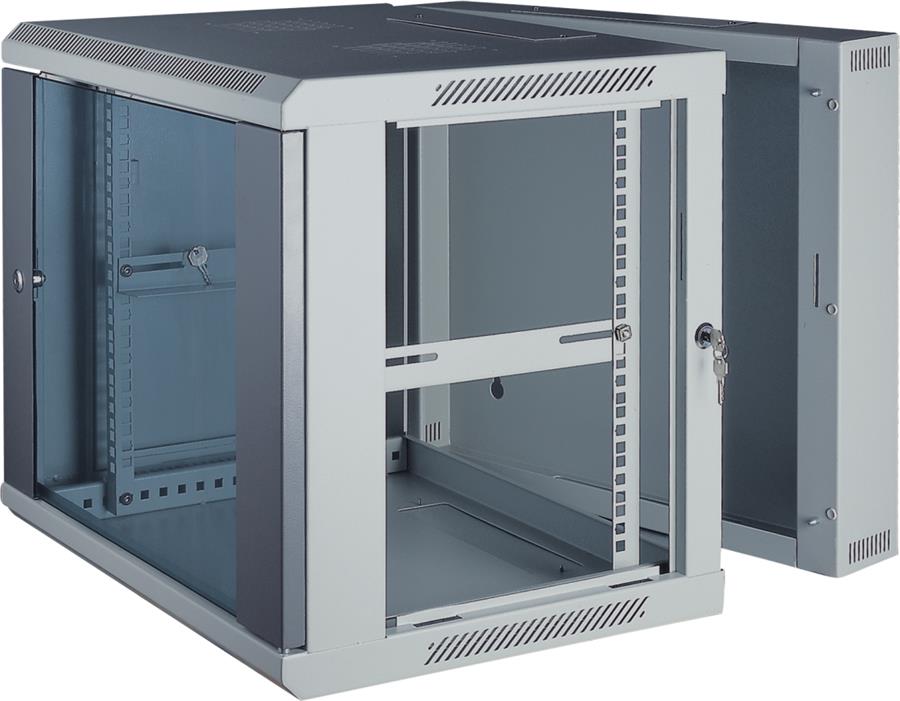

AH type wall mount cabinet

Model NO.: AH type

Product features:
- Elegant design, exquisite techniques, precise size, in the fashion, adds value to your project
- Static loading: 60kg
- Convenient wall installation design
- Cable entry on the top and bottom can be closed
- Conveniently detachable side doors, front and back door, to operate all-round, observe multidirectional
- Side door lock optional
- Top fan optional
- Door can be open from either side (no tools are required)
Surface treatment:
- Degreasing, pickling, phosphorescence, ablution and powder coating
Product description:
- AH model is a welding wall mounted cabinet
- With the elegant design, it is widely used in computer network system, university education equipment, broadcasting system and communication system
- Suits to put sophisticated computer and electronic equipment
Products configuration:
- Material: cold rolled quality steel
- Frame: 1.2mm, 1 piece
- Front door: 1.2mm, 1 piece
- Side door: 1.0mm, 1 piece
- Back frame: 1.5mm, 1 piece
- L tape frame: 1.2mm, 2 pieces
- Column: 1.5mm, 4 piece
- Screw nut bukled: 20 sets
AH6606: 6U, 600x600x370mm, flat packing: 0.146cbm
AH6609: 9U, 600x600x500mm, flat packing: 0.195cbm
AH6612: 12U, 600x600x635mm, flat packing: 0.245cbm
AH6615: 15U, 600x600x770mm, dlat packing: 0.297cbm
AH6506: 6U, 600x550x370mm, dlat packing: 0.134cbm
AH6509: 9U, 600x550x500mm, flat packing: 0.179cbm
AH6512: 12U, 600x550x635mm, flat packing: 0.226cbm
AH6515: 15U, 600x550x770mm, flat packing: 0.273cbm
Mark: AH type wall mount cabinet is weld type
Colors:
- Black (RAL9005)=B
- Gray (RAL7035)=G
