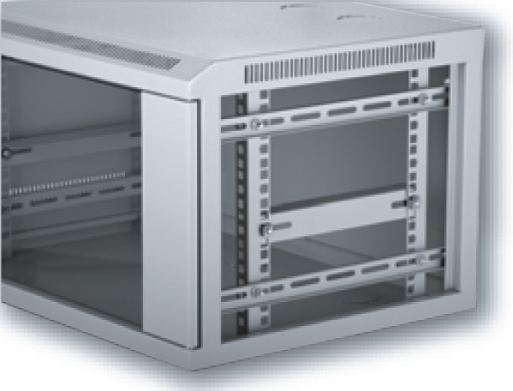

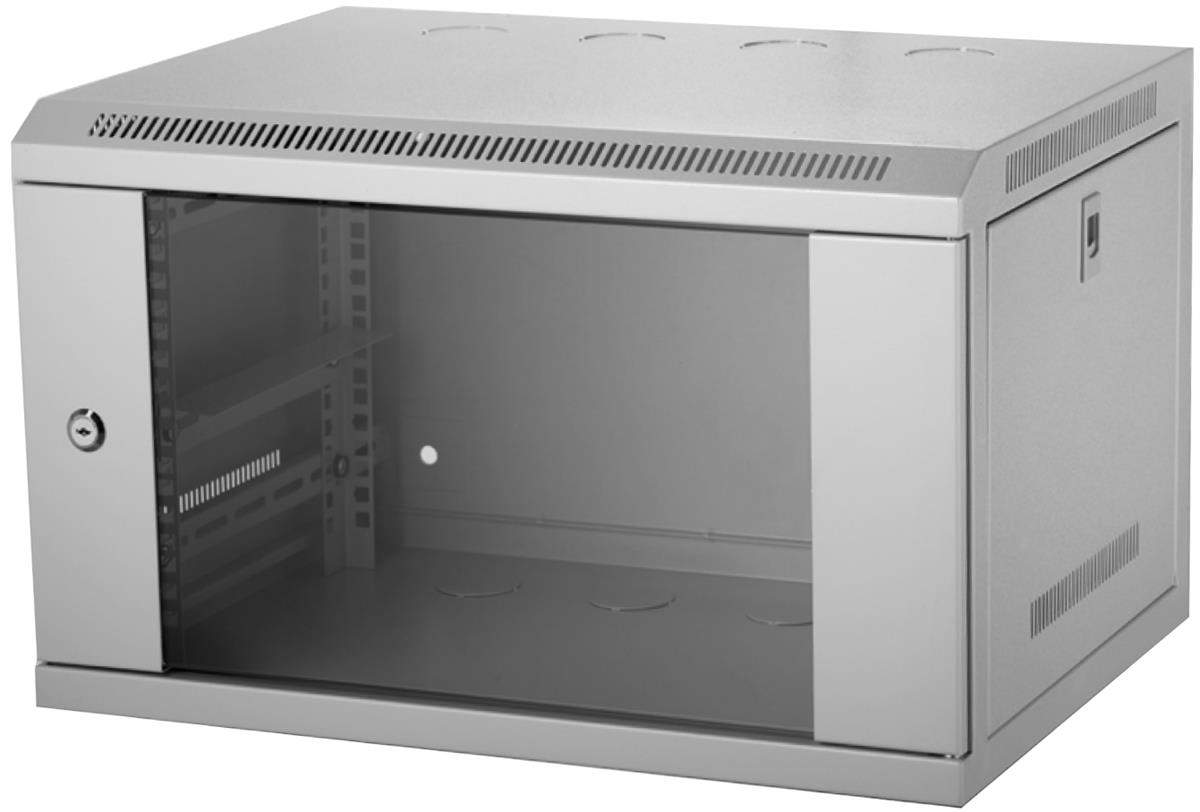

AG type wall mount cabinet

  • Model NO.: AG type
  • Product features:
    • Elegant design, exquisite techniques, precise size, in the fashion
    • Adds value to your project
    • Static loading: 60kg
    • Convenient wall installation design

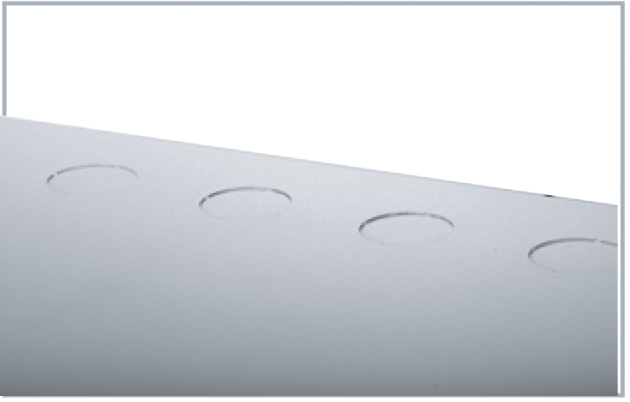

    • Fall type hole in the top and bottom
    • Conveniently detachable side doors,front and back door,to operate all-round,observe multidirectional
    • Side door lock optional
    • The door can be open from either side(No tools are required)
  • Surface treatment:
    • Degreasing, pickling, phosphorescence, ablution and powder coating
  • Product description:
    • AG model is a modular wall mounted cabinet.With the elegant design,it is widely used in computer network system,university education equipment,broadcasting system and communication system etc. It suits to put sophisticated computer and electronic equipment

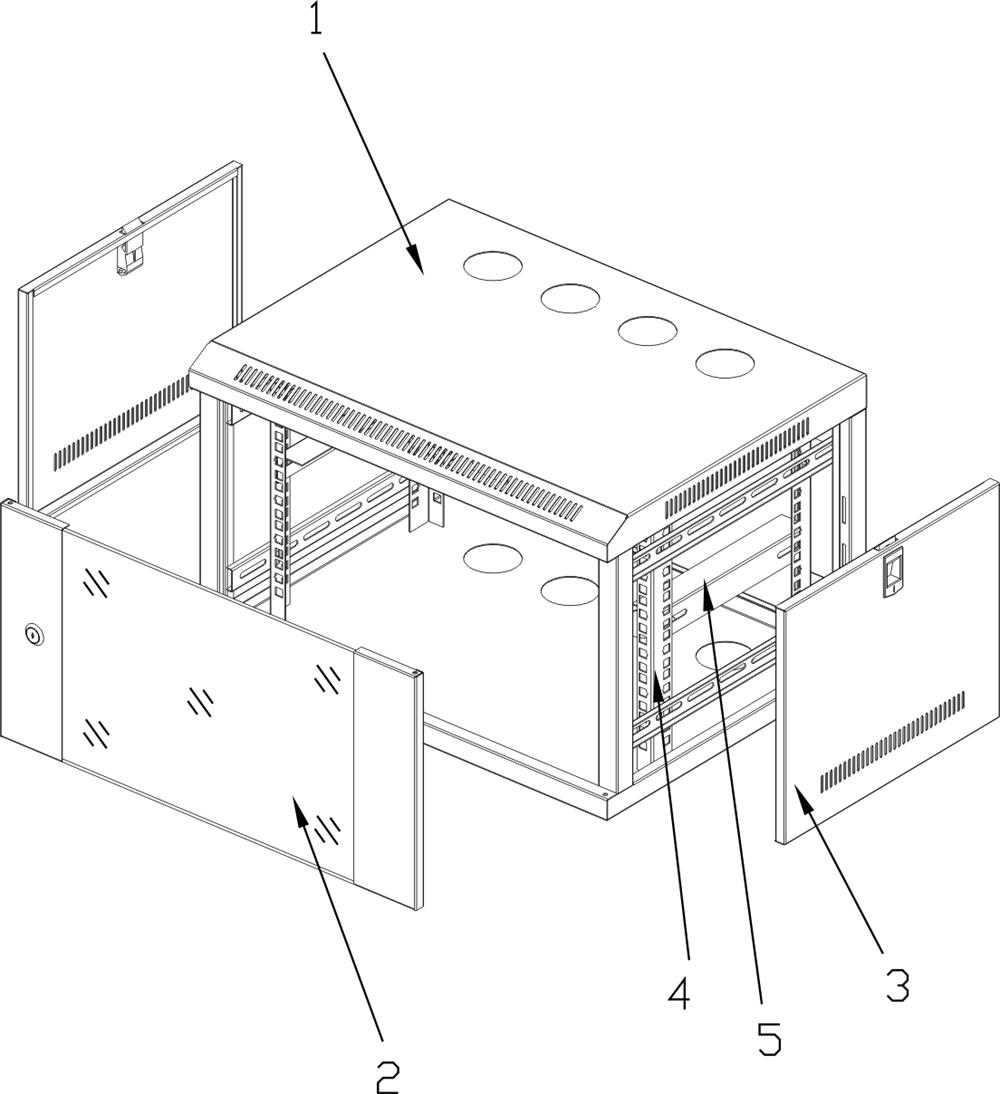

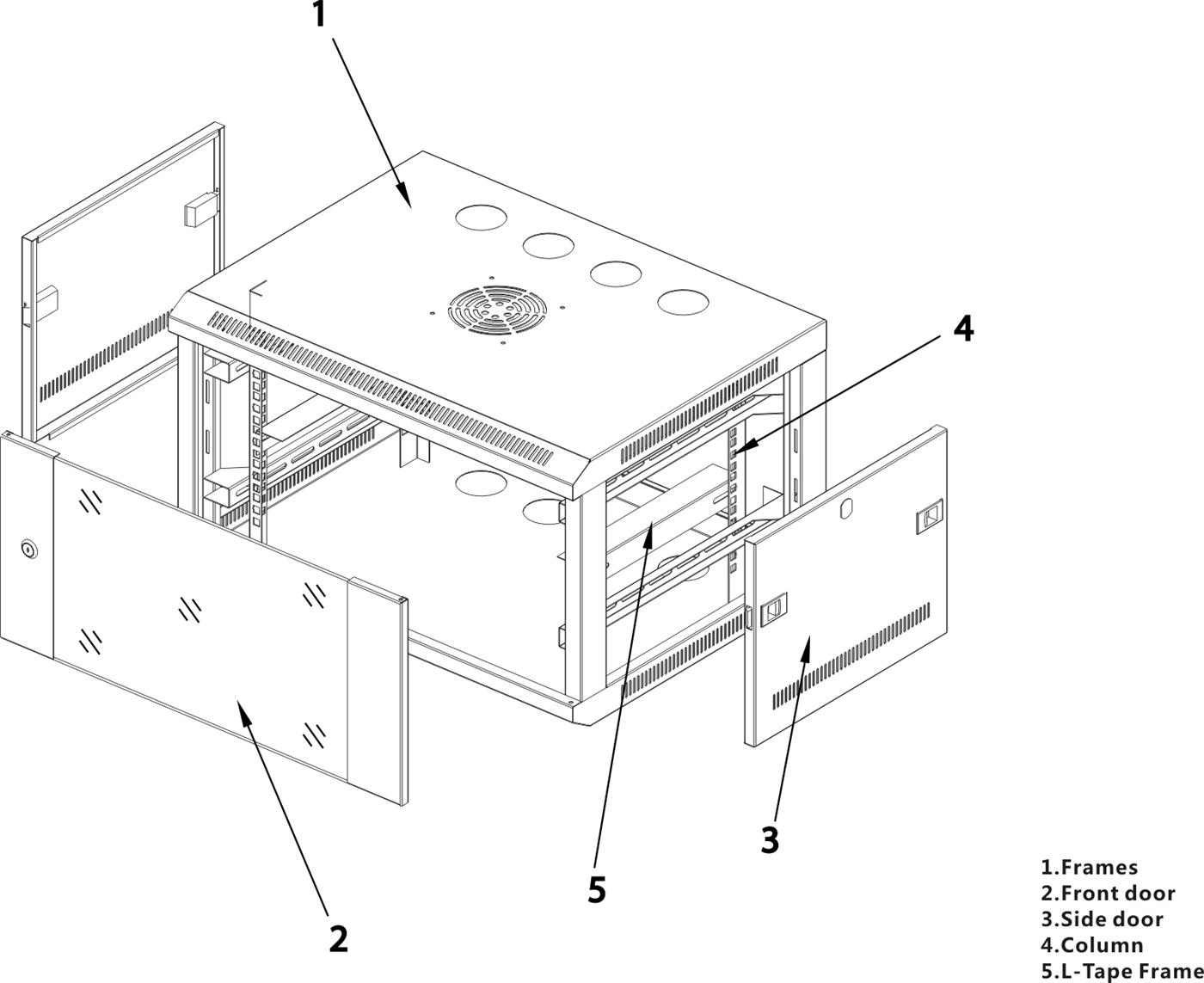

  • Products configuration:
    • Material: cold rolled quality steel
    • Frame: 1.0MM, 1PC
    • Front door: 1.2MM, 1PC
    • Side door: 1.0MM, 2PCS
    • L-Tape frame: 1.0MM, 2PCS
    • Column: 1.5MM, 4PCS
    • Screw nut buckled: 10Covers
  • AG5406: 6U,  540X400X335MM,   Flat packing: 0.081CBM
  • AG5408: 8U,  540X400X425MM,   Flat packing: 0.101CBM
  • AG5409: 9U,  540X400X470MM,   Flat packing: 0.112CBM
  • AG5412: 12U,  540X400X600MM,   Flat packing: 0.142CBM
  • AG5415: 15U,  540X400X735MM,   Flat packing: 0.173CBM
  • AG6406: 6U,  600X450X350MM,   Flat packing: 0.104CBM
  • AG6409: 9U,  600X450X485MM,   Flat packing: 0.143CBM
  • AG6412: 12U,  600X450X615MM,   Flat packing: 0.151CBM
  • AG6415: 15U,  600X450X750MM,   Flat packing: 0.219CBM

    Mark: AG type cabinet can be shipped by assembled or disassembled

    Color:

    Black (RAL9005)=B

    Gray (RAL7035)=G
