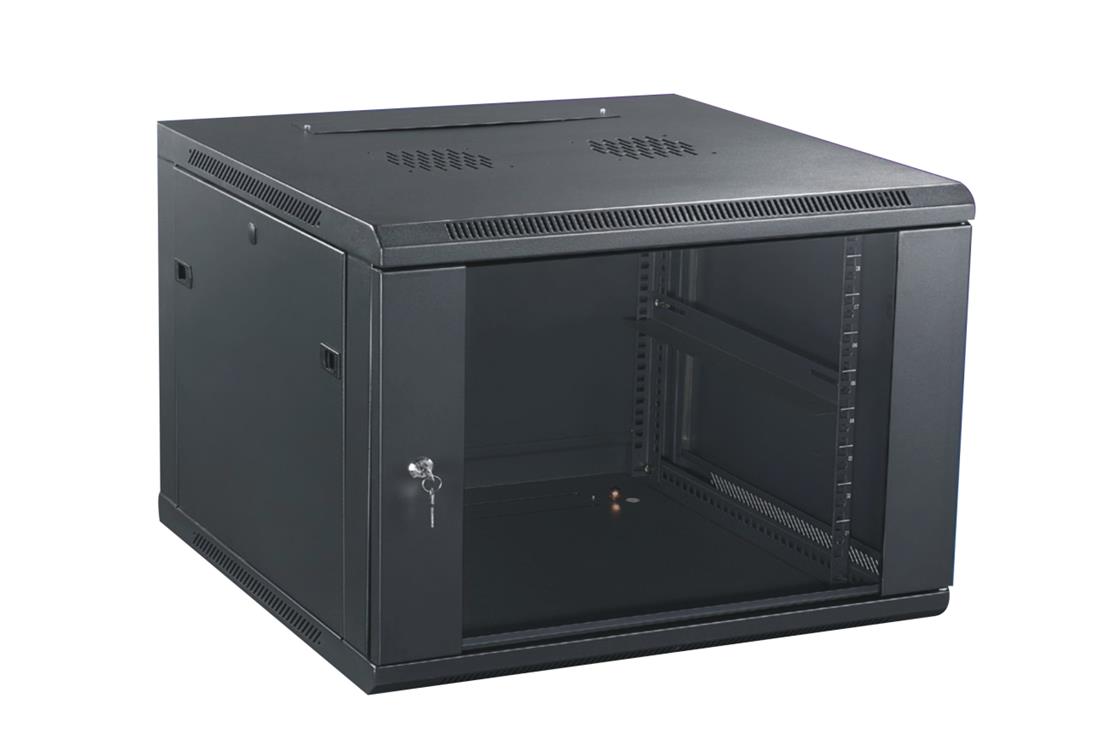

AD type wall mount cabinet

  • Model NO.: AD type
  • Product features:
    • Elegant design, exquisite techniques, precise size, in the fashion
    • Adds value to your project
    • Static loading: 60kg
    • Convenient wall installation design
    • Cable entry on the top and bottom can be closed
    • Conveniently detachable side doors,front and back door,to operate all-round,observe multidirectional
    • Side door lock optional
    • Top fan optional
    • The door can be open from either side(No tools are required)
  • Surface treatment:
    • Degreasing, pickling, phosphorescence, ablution and powder coating
  • Product description:
    • AD model is a modular wall mounted cabinet.With the elegant design,it is widely used in computer network system,university education equipment,broadcasting system and communication system etc. It suits to put sophisticated computer and electronic equipment

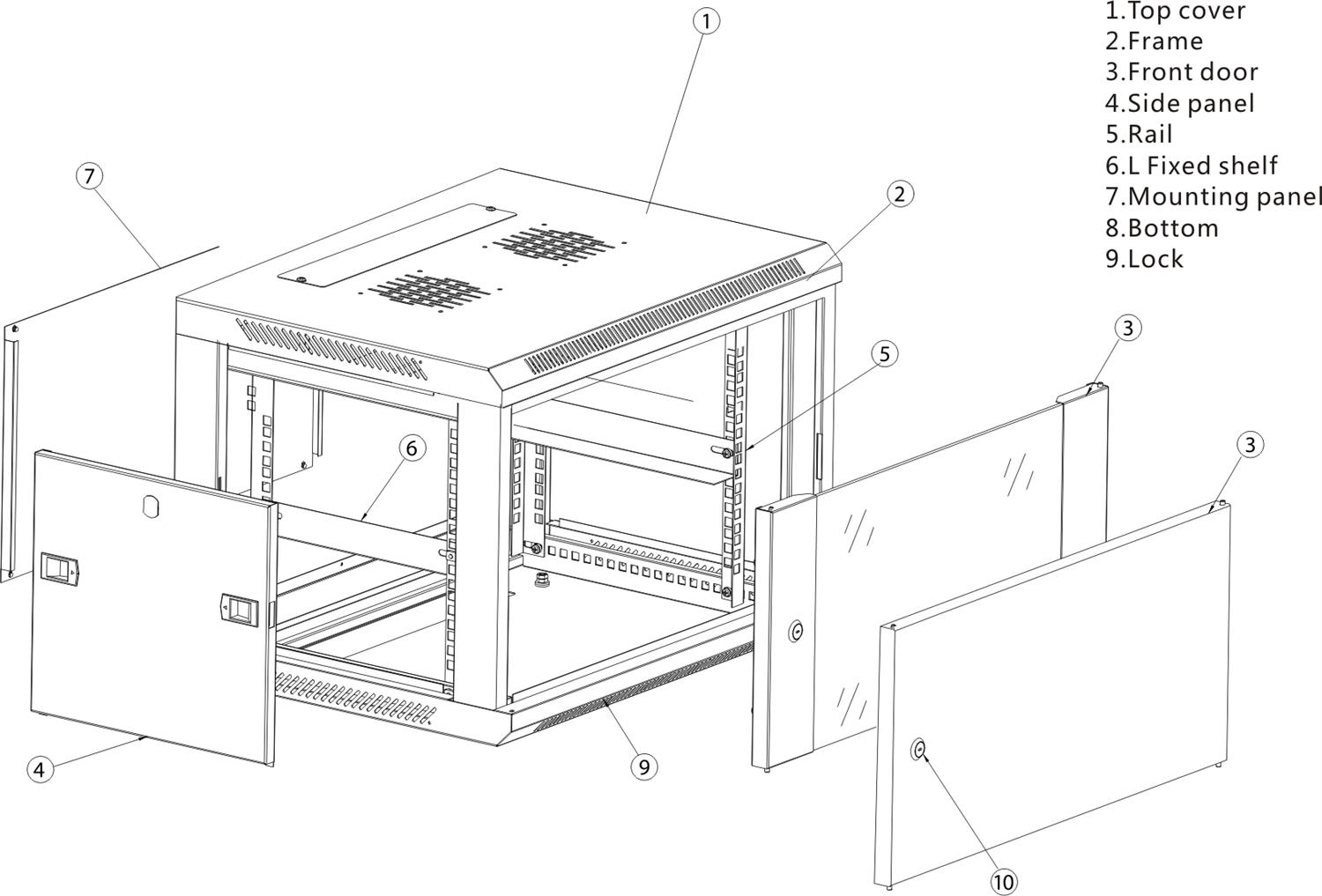

  • Products configuration:
    • Material: cold rolled quality steel
    • Top cover: 1.0MM, 1PC
    • Bottom: 1.0MM, 1PC
    • Frame: 1.0MM, 2PCS
    • Front door: 1.2MM, 1PC
    • Side door: 1.0MM, 2PCS
    • Beam: 1.2MM, 4PCS
    • L-Tape frame: 1.2MM, 2PCS
    • Back cover: 1.0MM, 1PC
    • Hang wallboard: 1.2MM, 1PC
    • Column: 1.5MM, 4PCS
    • Screw nut buckled: 10Covers

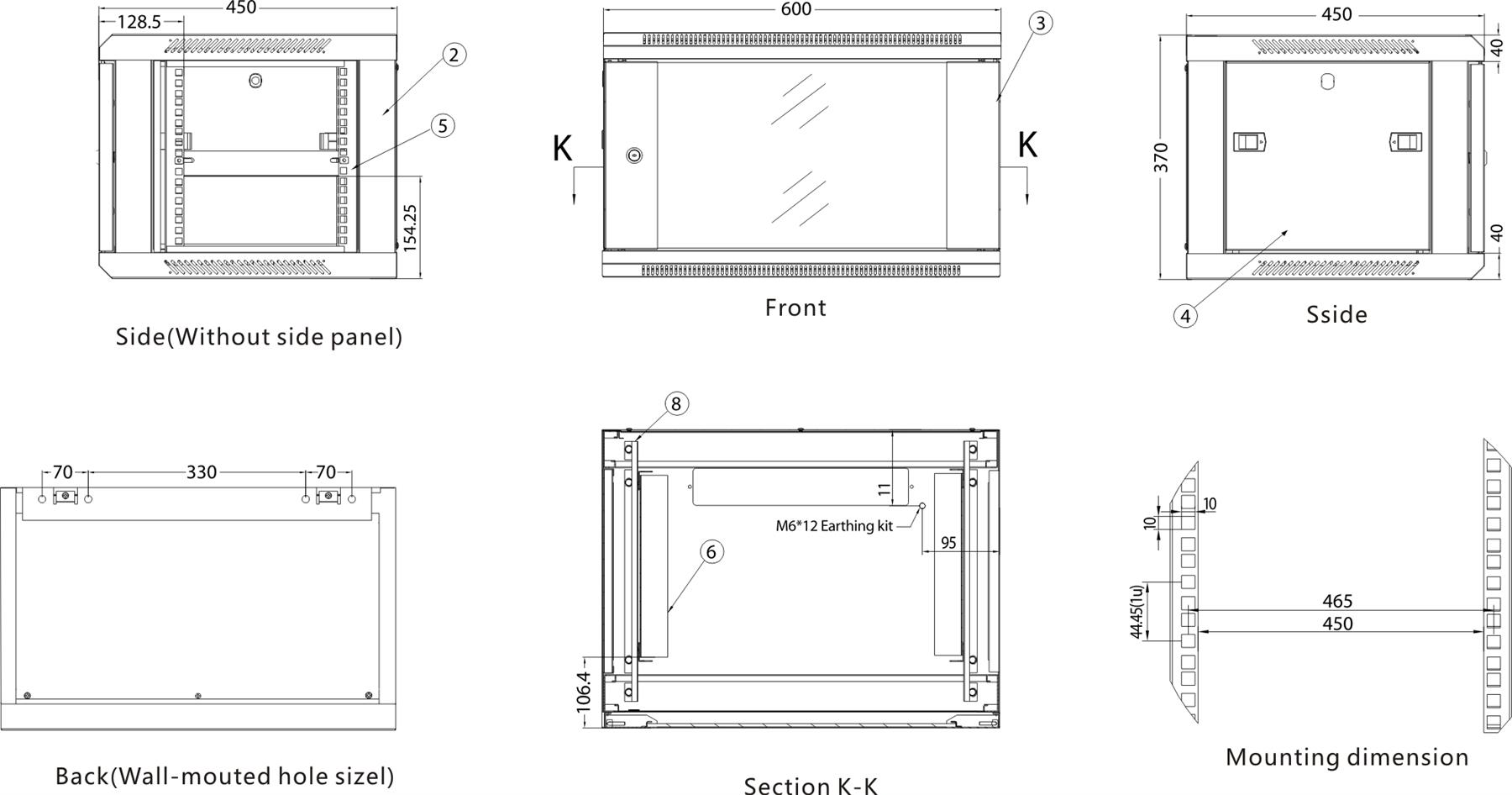

  • AD64066U,  600X450X370MM,   Flat packing: 0.108CBM
  • AD6409: 9U,  540X400X470MM,   Flat packing: 0.112CBM
  • AD6412: 12U,  600X450X635MM,   Flat packing: 0.182CBM
  • AD6415: 15U,  600X450X770MM,   Flat packing: 0.220CBM
  • AD6606: 6U,  600X600X370MM,   Flat packing: 0.145CBM
  • AD6609: 9U,  600X600X500MM,   Flat packing: 0.195CBM
  • AD6612: 12U,  600X600X635MM,   Flat packing: 0.245CBM
  • AD6615: 15U,  600X600X770MM,   Flat packing: 0.297CBM

    Mark: AD type cabinet can be shipped by assembled or disassembled

    Color:

    Black (RAL9005)=B

    Gray (RAL7035)=G
