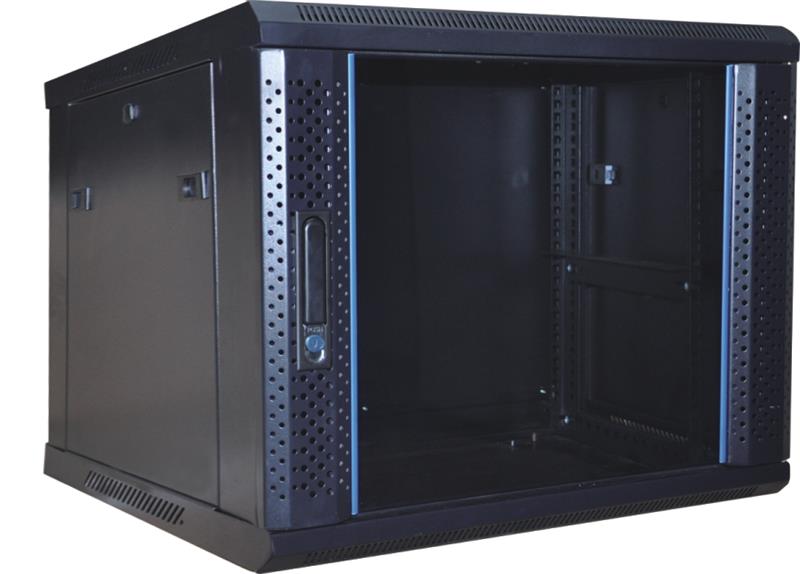

AB type wall mount cabinet

  • Model NO.: AB type
  • Product features:
    • Elegant design, exquisite techniques, precise size, in the fashion
    • Adds value to your project
    • Static loading: 60kg
    • Convenient wall installation design
    • Cable entry on the top and bottom can be closed
    • Conveniently detachable side doors,front and back door,to operate all-round,observe multidirectional
    • Side door lock optional
    • Top fan optional
    • The door can be open from either side(No tools are required)
  • Surface treatment:
    • Degreasing, pickling, phosphorescence, ablution and powder coating
  • Product description:
    • AB model is a modular wall mounted cabinet.With the elegant design,it is widely used in computer network system,university education equipment,broadcasting system and communication system etc. It suits to put sophisticated computer and electronic equipment

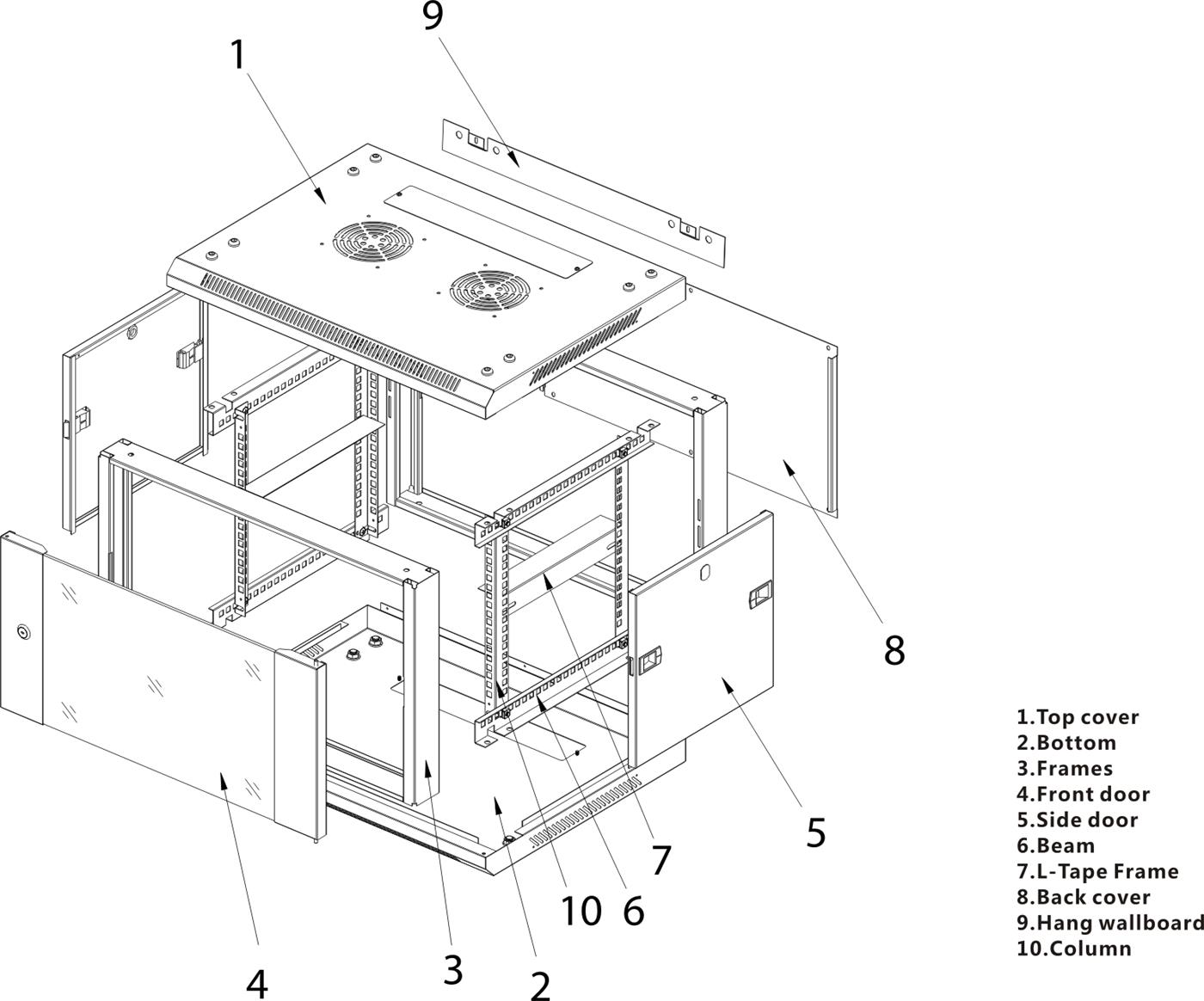

  • Products configuration:
    • Material: cold rolled quality steel
    • Top cover:1.0mm,1 piece
    • Bottom: 1.0mm, 1 piece
    • Frame: 1.0mm, 2 pieces
    • Front door: 1.2mm, 1 piece
    • Beam:1.2mm,4 pieces
    • L-Tape frame:1.2mm, 2 pieces
    • Back cover:1.0mm, 1piece
    • Hang wallboard:1.2mm,1piece
    • Column:1.5mm,4pieces
    • Screw nut buckled: 20pieces

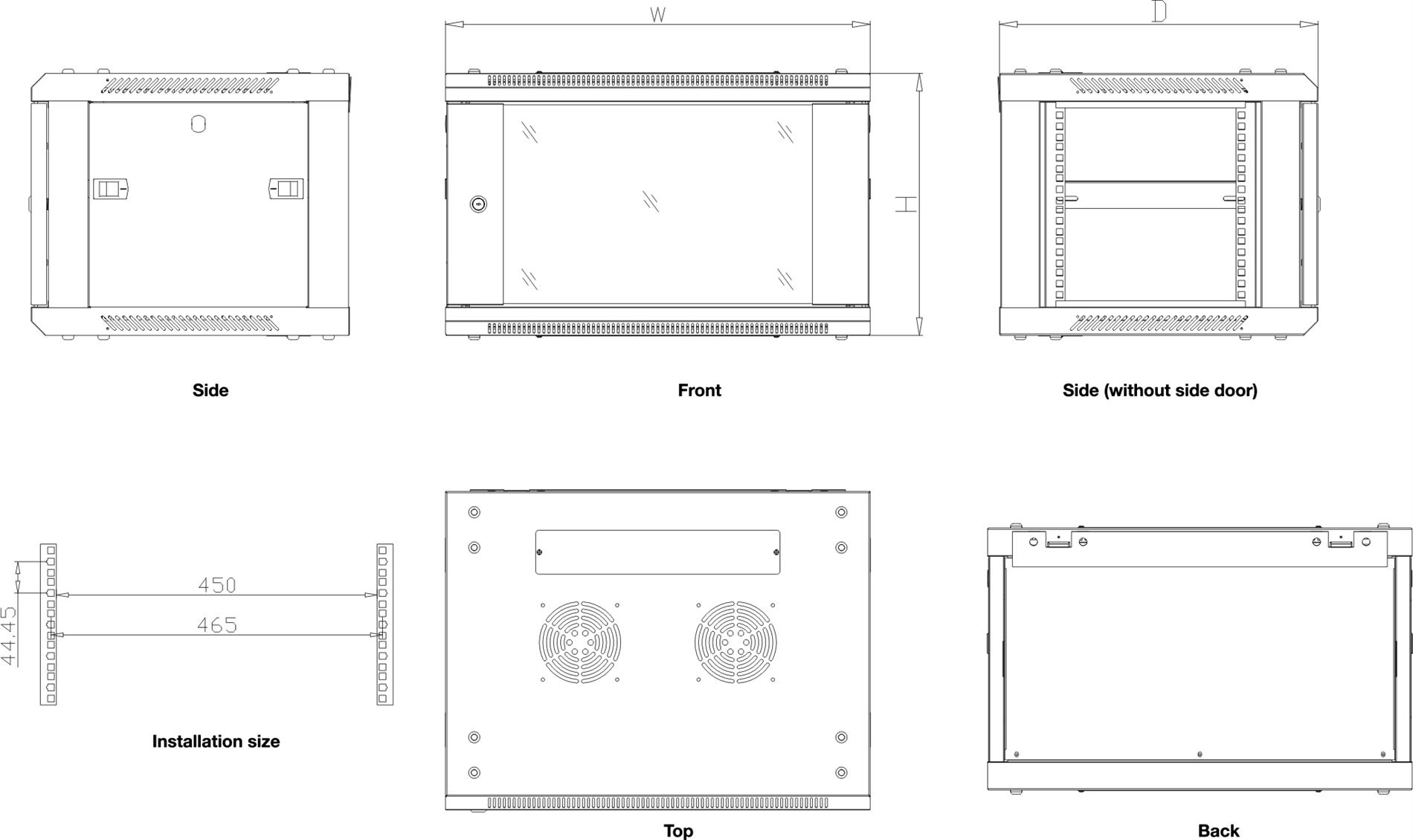

  • AB6406: 6U,  600X450X370MM,   Flat packing: 0.07CBM
  • AB6409: 9U,  600X450X500MM,   Flat packing: 0.08CBM
  • AB6412: 12U,  600X450X635MM,   Flat packing: 0.068CBM
  • AB6415: 15U,  600X450X770MM,   Flat packing: 0.082CBM
  • AB6606: 6U,  600X600X370MM,   Flat packing: 0.096CBM
  • AB6609: 9U,  600X600X500MM,   Flat packing: 0.096CBM
  • AB6612: 12U,  600X600X635MM,   Flat packing: 0.069CBM
  • AB6615: 15U,  600X600X770MM,   Flat packing: 0.074CBM

    Mark: AU type cabinet can be shipped by assembled or disassembled

    Color:

    Black (RAL9005)=B

    Gray (RAL7035)=G
