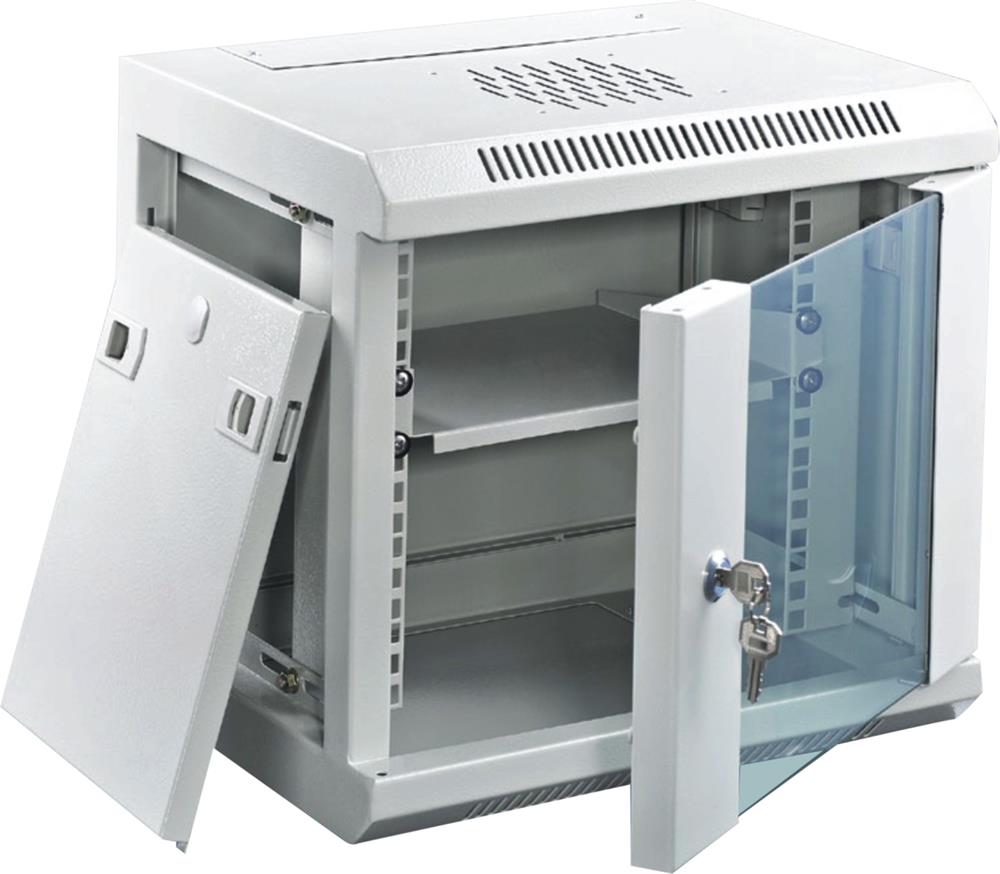

AF type wall mount cabinet

  • Model NO.: AF type
  • Product description:
    • AF 10" MINI wall mounted cabinets rigid frame structure with load rating of 50kgs,cable entry from top and bottom,front section with glass door keys and locks,quickly removable side panels,provision for optional lock,construction from 1mm steel and frames 2mm steel,fan option with effective
    • ventilation,2 pairs of 10" movable vertical extrusion
  • Product features :
    • Variety of heights
    • 350mm wide body
    • vented top and bottom
    • with tempered glass locking doors
    • the door can be quickly removed on side for easy cabinet installation,and can be re-hinged form either side (no tools required).
    • mounting panel on the rear,can be easily install

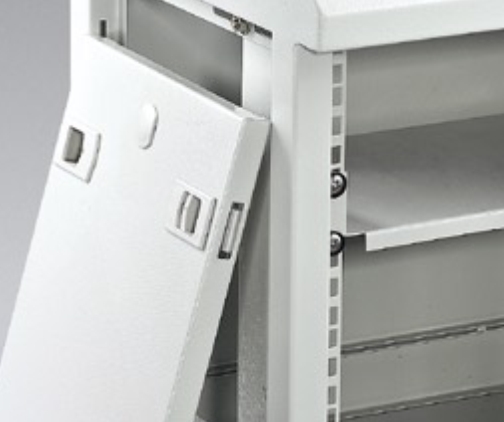

    • quickly remmovable side door
    • installation can be optional for standing or wall
    • mounting
    • adjustable mounting rails front and back

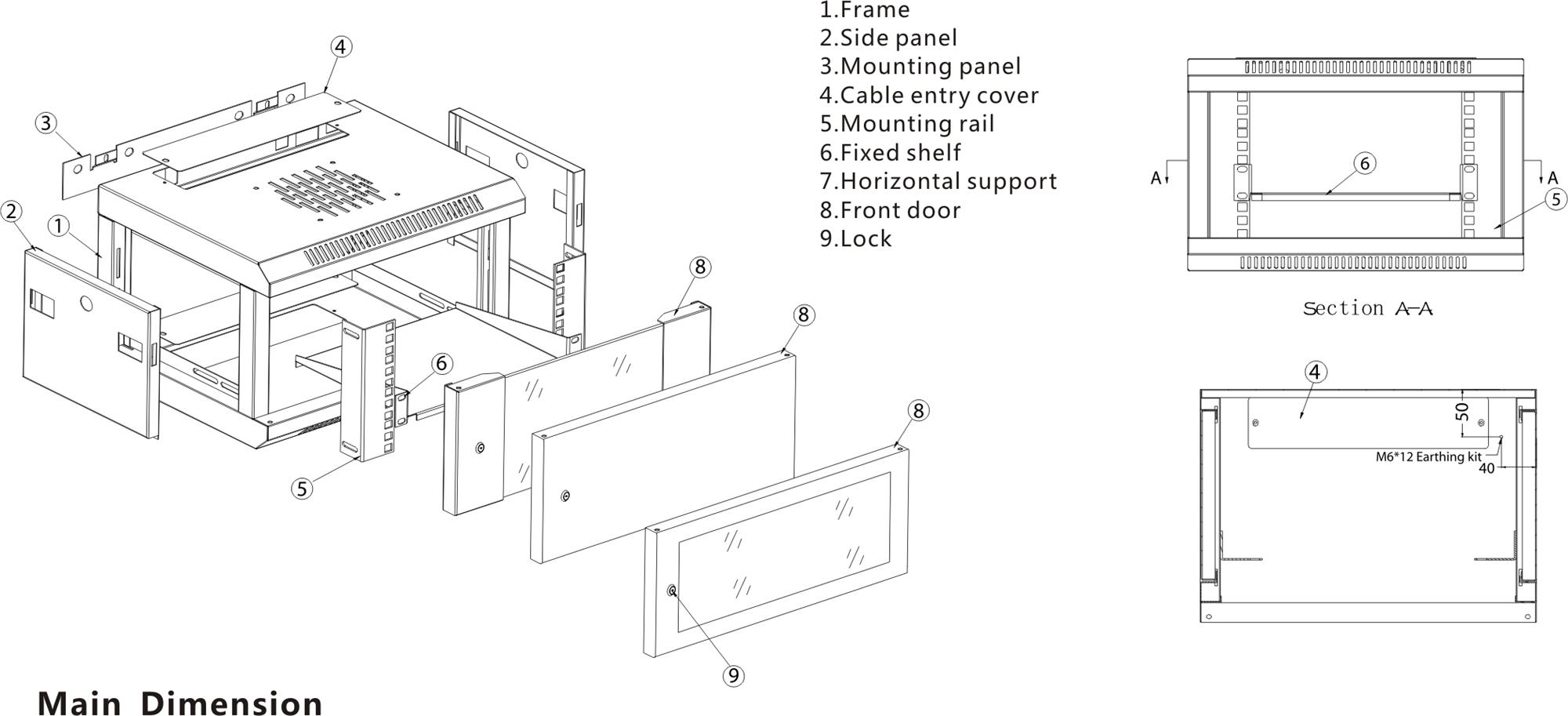

  • Products configuration:
    • Material: cold rolled quality steel
    • Frame: 1.0MM, 1Set
    • Side panel: 1.0MM, 2PCS
    •  Mounting panel: 1.2MM, 3PCS

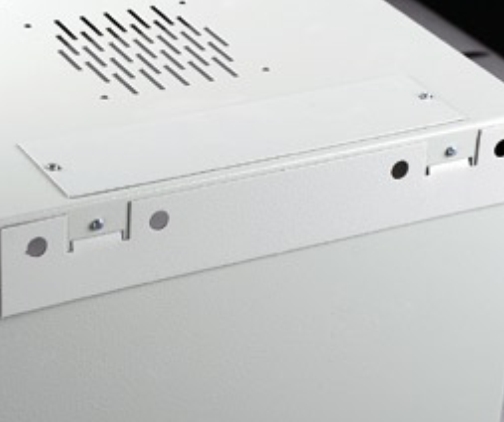

    • Cable entry cover: 1.0MM, 4PCS
    • Mouting rail: 1.0MM, 5PCS

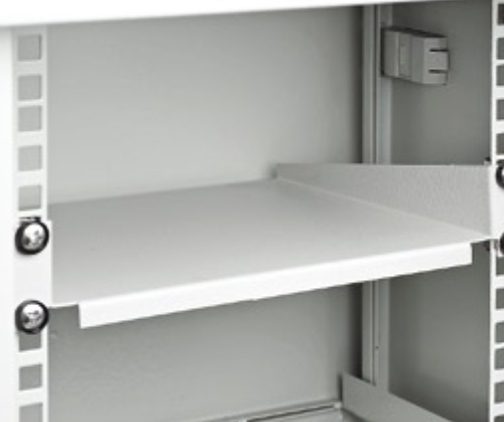

    • Fixed shelf: 1.0MM, 6PCS
    • Horizontal support: 1.0MM,7PCS
    • Front door: 1.2MM, 8PCS
    • Lock: 9PCS

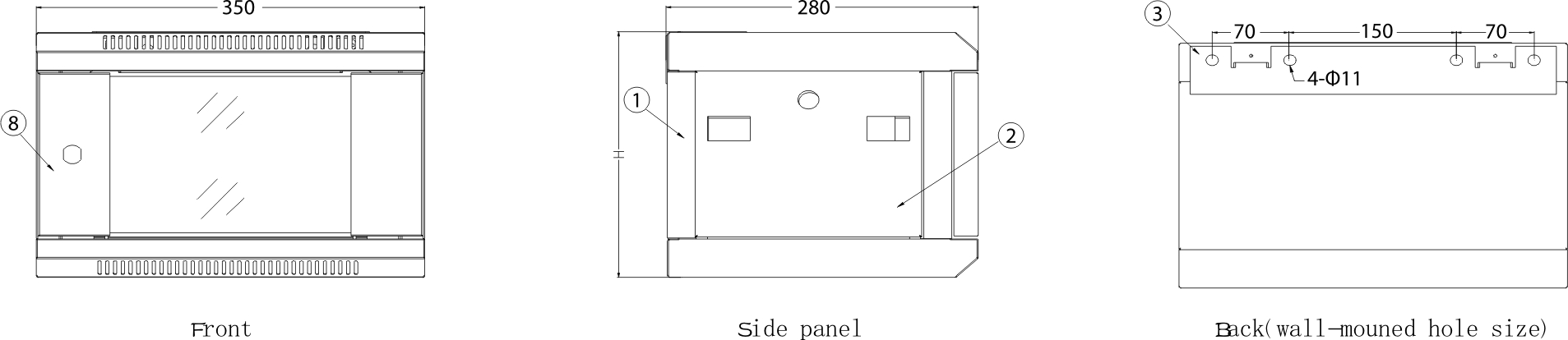

  • AF32044U,  350X280X255MM,   Flat packing: 0.0305CBM
  • AF3206:  6U,  350X280X344MM,   Flat packing: 0.0405CBM
  • AF3209: 9U,  350X280X477MM,   Flat packing: 0.0556CBM
  • AF3212: 12U,  350X280X611MM,   Flat packing: 0.0705CBM

    Mark: AF type cabinet can be shipped by assembled or disassembled

    Color:

    Black (RAL9005)=B

    Gray (RAL7035)=G
