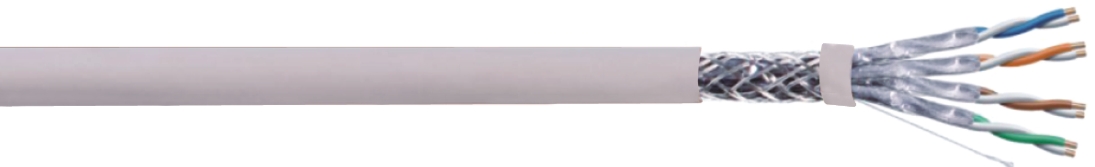

S/FTP Cat7A twissted pair lan cable 100002

S/FTP Cat7A 4PRS 24AWG strand

• Specifications:
  • UTP CAT7 cable
  • Solid BC conductor
  • HDPE insulated
  • AL foil shielded and LSZH jacket
  • CE and UL certified
  • UTP/FTP/SFTP CAT7 cable

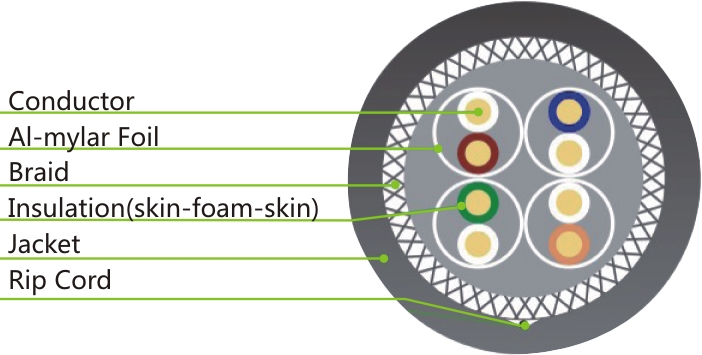

• Conductor:
  • Raw material of the conductor: solid bare copper
  • Conductor diameter: 0.585±0.003mm (23AWG)
• Insulation:
  • Raw material of the conductor: F-PE
  • Quantity: 4 twisted pairs
  • Blue/white-blue
  • Green/white-green
  • Orange/white-green
  • Brown/white-brown
  • Insulation diameter: 1.45±0.005mm
  • Average thickness: 0.4325mm
  • Minimum point thickness: 0.43mm
• Twisted pairs screen: aluminum foil
• Overall screen:
  • Raw material of the screen: 96/0.10mm TC wire braiding
  • Coverage rate: ≥40%
• Jacket RIP cord: nylon thread
• Sheath:
  • Sheath material: LSZH or PVC
  • Nominal diameter: 7.5±0.2mm
  • Average thickness: 0.65mm
  • Minimum point thickness: 0.55mm
• Mechanical properties:
  • Conductor insulation material: halogen free foam/skin material
  • Cable jacket material: halogen-free, flame-retardant material
  • Application area: dray as well as humid rooms
  • Temperature (moved): 0 to 50°C
  • Operating temperature: -20 to +60°C
  • Minimum bending radius for one-time bending: 4×O.D
  • Minimum bending radius during installation: 8×O.D
• Electrical properties:
  • Loop impendence: 130W/km
  • Highest impendence difference: 2%
  • Insulation resistance >5000MW x km
  • Impendence Z0 at 1 500MHz: 100 W ± 15%
  • Impendence Z0 at 1 350MHz: 100 W ± 18%
  • Impendence Z0 at 1 600MHz: 100 W ± 25%
  • Surface transfer impendence: <100MW per meter at 10MHz
  • Earthing symmetry db/BZL = 1000m > 46dB at 64kHz
  • Earthing symmetry db/BZL = 100m > 40dB at 1MHz
  • Earthing symmetry db/BZL = 100m > 20dB at 100MHz
  • Mutual capacitance: 43pF/m
  • Highest earthing-coupling: 0.001MHz: 1000 pF/km
  • Propagation speed at > 10MHz (NVP*c): 0.79c
  • Signal propagation delay >10MHz: 4.2ns/m
  • Skew: <25ns/100m
