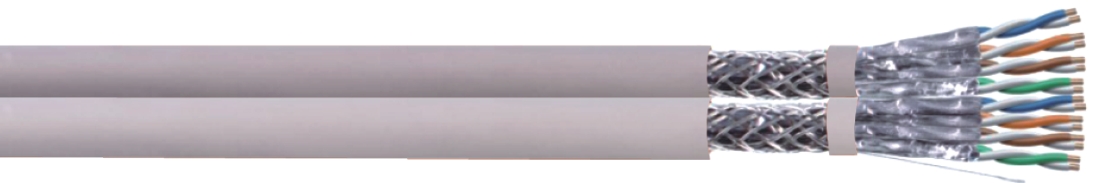

S/FTP Cat7 4PRS + 4PRS 24AWG strand
Specifications
UTP CAT7 CABLE
1)Solid BC conductor;
2)HDPE insulated;
3)AL foil shielded & LSZH jacket;
4)CE, UL certified
UTP/FTP/SFTP CAT7 CABLE
1. SPECIFICATION

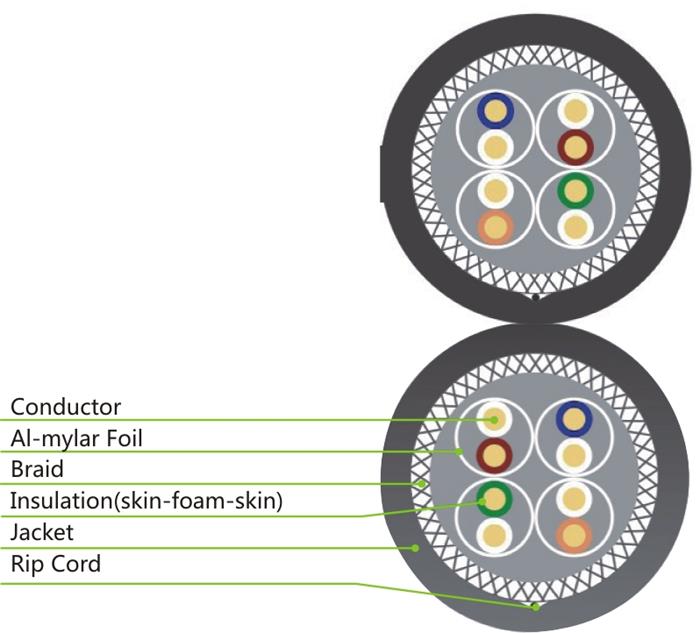

1) CONDUCTOR
* Raw material of the conductor: solidbare copper
* Conductor Dia.: 0.585±0.003mm (23AWG)
2) INSULATION
* Raw material of the conductor:F-PE
* Quantity:4 twisted pairs
Blue/white-blue; Green/white-green;
Orange/white-green; Brown/white-brown;
* Insulation Dia. : 1.45±0.005mm
* Average thickness: 0.4325 mm
Minimum point thickness: 0.43mm
3) TWISTED PAIRS SCREEN:Aluminum foil
4) OVERALL SCREEN
* Raw material of the screen:96/0.10mm TC wire braiding
* Coverage rate:≥40%
5) JACKET RIP CORD: Nylonthread
6) SHEATH
* Sheath material: LSZH or PVC
* Nominal Dia.: 7.5 ± 0.2mm
* Average thickness: 0.65mm
* Minimum point thickness: 0.55mm
2, MechanicalProperties
Conductor insulation material: halogenfree Foam/Skin material
Cable jacket material:halogen-free, flame-retardant material
Application area: dray as well ashumid rooms
Temperature (moved): 0°C to 50°C
Operating temperature: -20°C to +60°C
Min. bending radius for one-timebending: 4×O.D.
Min. bending radius during installation:8×O.D.
3, Electrical properties
Loop impendence: 130 W/km
Highest impendence difference: 2%
Insulation resistance >5000 MW x km
Impendence Z0 at 1500MHz: 100 W ± 15%
Impendence Z0 at 1350MHz: 100 W ± 18%
Impendence Z0 at 1600MHz: 100 W ± 25%
Surface transfer impendence: < 100 MWper Meter at 10MHz
Earthing symmetry db/BZL = 1000m >46dB at 64kHz
Earthing symmetry db/BZL = 100m> 40dB at 1MHz
Earthing symmetry db/BZL = 100m >20dB at 100MHz
Mutual capacitance: 43pF/m
Highest earthing-coupling:0,001MHz: 1000 pF/km
Propagation speed at > 10MHz (NVP*c):0,79c
Signal propagation delay>10MHz: 4,2ns/m
Skew: <25ns/100m
PACKAGING
305m/1000ft Easy pulling box;
500m/wooden reel;
1000m/wooden reel
