RG8 coaxial cable

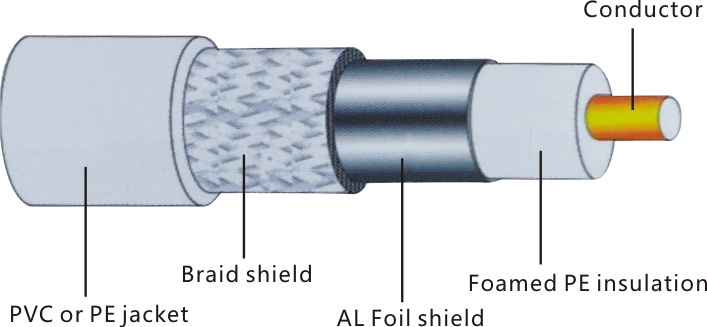

Product description:
inner conductor:1/2.74mm BC or CCA
insulation:7.24mm foamed polyethlene
shield 1:AL foil longitudinal
shield 2: Tinned copper braid
jacket:10.30mm PVC or PE
flammability grade:CMX,CM
operation temperature:-25-70℃ or -40-70℃
reference standrd:MIL-C-17
Electrical characteristics
impedance:50±3Ω
capacitance:78±3pF/m
Maz attenuation:(20℃)
