RG6 double shield coaxial cable

Professional manufacturer
Popular in Europe
Cable specifications:
- Inner conductor: CCA/CCS/CU
- Dielectric: SPE/foam PE
- AL foil: bonded, non-bonded, single, double
- Braiding wire material: Al-Mg, CCA, TC
- Braiding wire diameter: 0.12, 0.15 and 0.16mm
- Braiding net: 48, 64, 72, 80, 96, 128 and more
- Coverage: 40%, 50%, 60%, 80% and more
- PVC degree: 65, 68, 70 and 75
- Colors: black, white or grey
- OEM and customer's designation are welcome

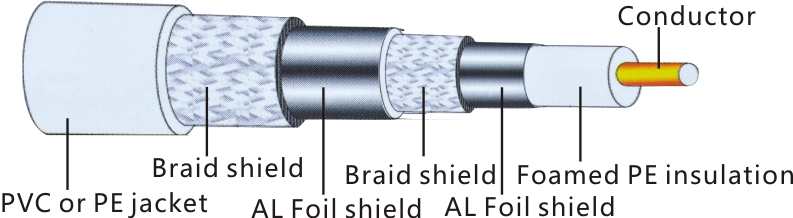

RG6 cable construction:
- Conductor:1*1.024mm TC/CCS/BC or other's need
- Insulation: 4.57mm LDPE
- Shield: 16*8*0.16 BC or TC braids
- Jacket: PVC/halogen-free/alphar megolon PVC
Characteristics:
- Nominal impedance: 75 ohms
- Nominal capacitance: 56.8pF/m
- Attenuation: 69dB/km (100MHz)
- Low losses and low propagation delays
