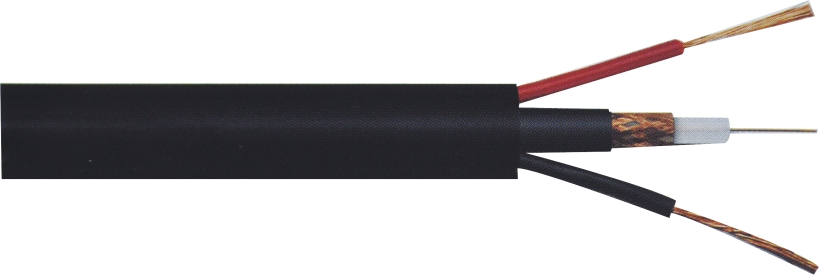

RG59 composite coaxial cable B
Product description

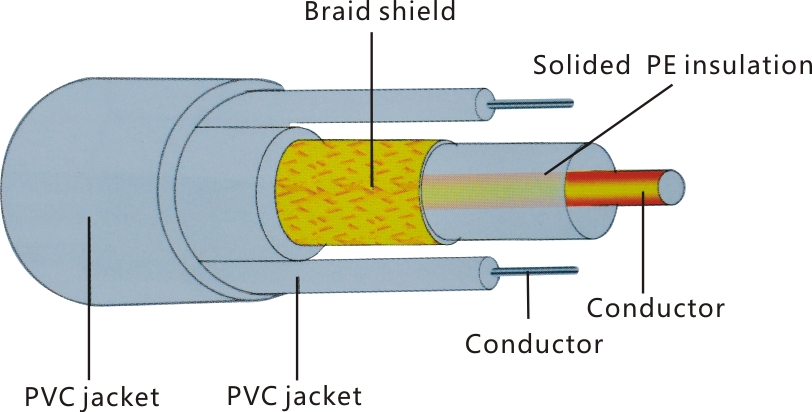

VIDEO-CABLE:
inner conductor:1/0.60mm BC or CCS
insulation:3.70mm foamed polyethlene
shield : BC or CCS wire braid
jacket:6.00mm PVC
AUDIO-CABLE:
inner conductor:24/0.19mm bare copper
insulation:2.70mm PVC
jacket:7.8x14.0mm PVC
flammability grade:CMX,CM
operation temperature: -25-70℃
reference standrd:MIL-C-17
Electrical characteristics
impedance:75±3Ω
capacitance:66±3pF/m
Maz attenuation:(20℃)
