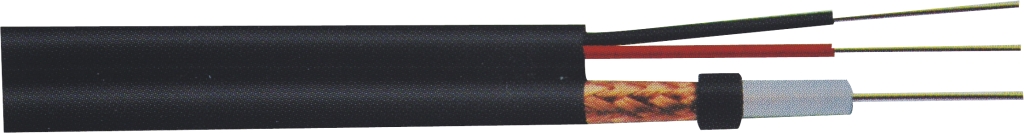

RG59 composite coaxial cable A
Product description:

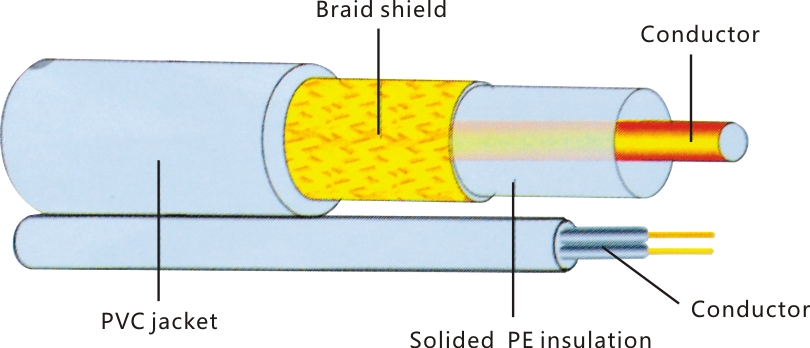

COAXIAL:
inner conductor:1/0.81mm BC or CCS
insulation:3.70mm foamed polyethlene
shield : BC or CCS wire braid
jacket:6.00mm PVC
TWISTED PAIR CABLE(S):
inner conductor:7/0.38mm BC or CCA
insulation:1.60mm PVC or PE
jacket:4.80mm PVC
flammability grade:CMX,CM
operation temperature: -25-70℃
reference standrd:MIL-C-17
Electrical characteristics
impedance:75±3Ω
capacitance:55±3pF/m
Maz attenuation:(20℃)
