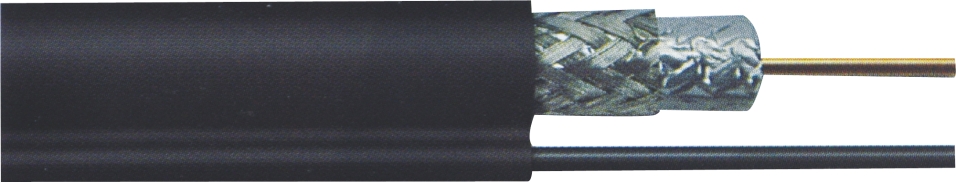

RG11 gell filled coaxial cable

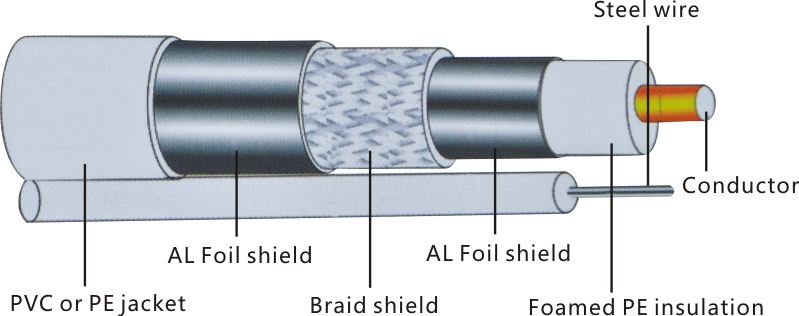

Product description:
inner conductor:1/1.63mm BC or CCS
insulation:7.11mm foamed polyethlene
shield 1:AL foil longitudinal
shield 2: BC or AL wire braid
messenger:7.83mm steel wire
jacket:10.30+3.60mm PVC or PE
flammability grade:CMX,CM
operation temperature:-40-70℃ or -40-70℃
reference standrd:MIL-C-17
Electrical characteristics
impedance:75±3Ω
capacitance:52±3pF/m
Maz attenuation:(20℃)
