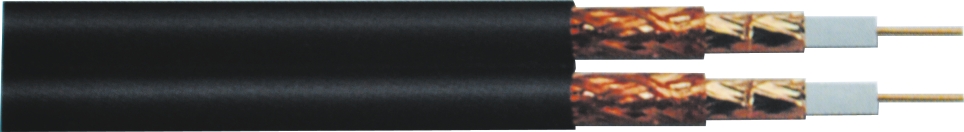

CT63 coaxial cable
Product description:

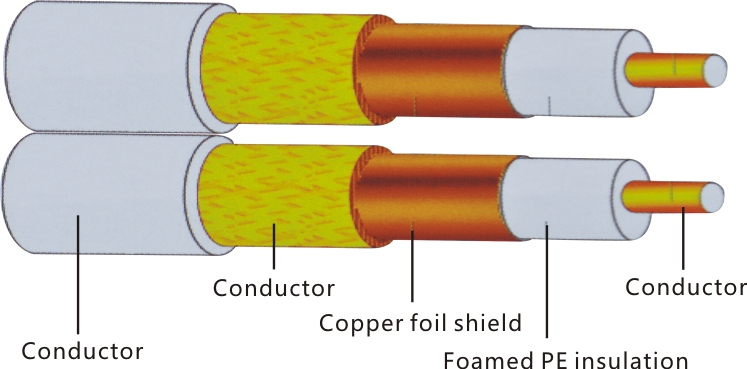

7inner conductor:1/0.65mm bare copper
insulation:3.10mm foamed polyethlene
shield 1:Copper foil longitudinal
shield 2: Bare copper wire braid
jacket:4.70*10.00mm PVC
flammability grade:CMX,CM
operation temperature:-25-70℃
reference standrd:BS EN 50111
Electrical characteristics
impedance:75±3Ω
capacitance:55±3pF/m
Maz attenuation:(20℃)
