CT100 coaxial cable

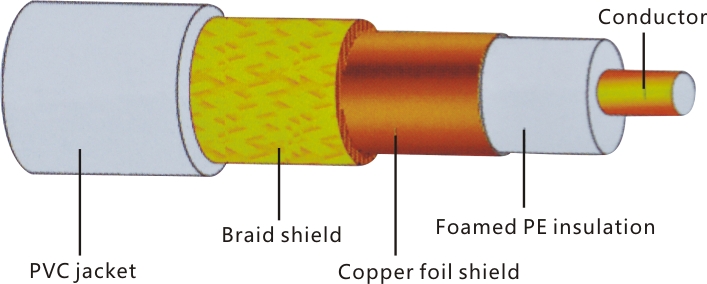

Product description:
inner conductor:1/1.00mm bare copper
insulation:4.60mm foam polyethlene
shield 1:Copper foil longitudinal
shield 2: Bare copper wire braid
jacket:6.60mm PVC
flammability grade:CMX,CM
operation temperature:-25-70℃
reference standrd:BS EN 501117
Electrical characteristics
impedance:75±3Ω
capacitance:52±3pF/m
Maz attenuation:(20℃)
