5C-FB coaxial cable

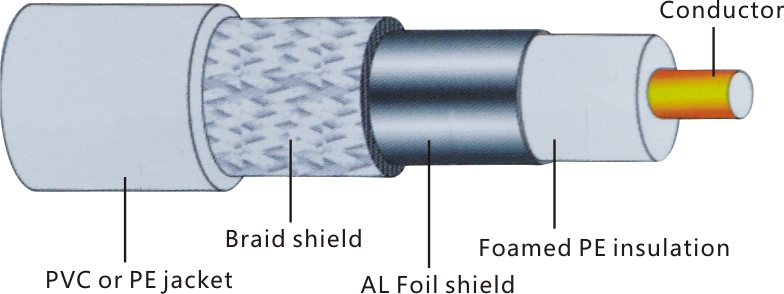

Product description:
inner conductor:1/1.05mm bare copper
insulation:5.00mm foamed polyethlene
shield 1:AI foil longitudinal,bonded
shield 2: Aluminum braid
jacket:7.70mm PVC
flammability grade:CMX,CM
operation temperature:-40-70℃ or -25-70℃
reference standrd:JIS-C3105
Electrical characteristics
impedance:75±3Ω
capacitance:52±3pF/m
Maz attenuation:(20℃)
