17VATC coaxial cable

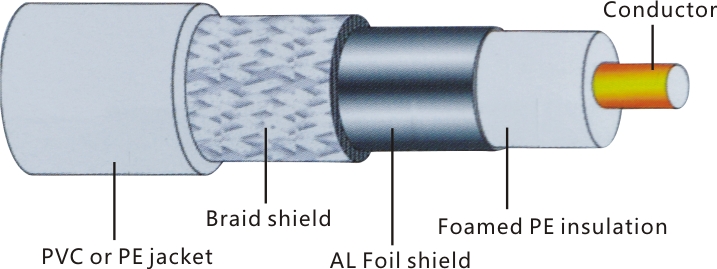

Product description:
inner conductor:1/1.13mm stranded BC or TC
insulation:4.80mm foam polyethlene
shield 1:AI foil longitudinal,bonded
shield 2: BC or Aluminum wire braid
jacket:6.80mm PVC
flammability grade:CMX,CM
operation temperature:-40-70℃ or -25-70℃
reference standrd:MIL-C-17
Electrical characteristics
impedance:75±3Ω
capacitance:52±3pF/m
Maz attenuation:(20℃)
