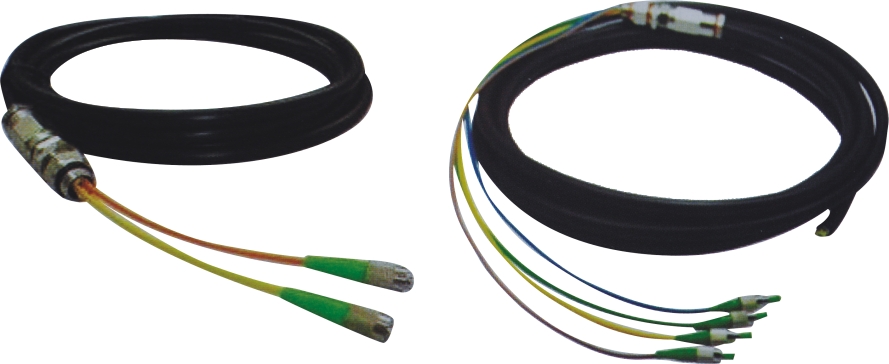

Waterproof pigtial

Waterproof pigtial
  • Model NO.: Waterproof pigtial

Waterproof pigtial
  • Specifications:
    • Insert loss: ≤0.3dB or ≤0.2dB
    • Return loss: PC≥40dB and APC≥60dB
    • Repeatability: ≤0.3dB or ≤0.2dB
    • Resistance (1000 times): ≤0.3dB or ≤0.2dB
    • Industry standards: -40 to 85°C
    • operation temperature:-40 to 85°C
    • Storage temperature: IEC, CR-326 and RoHS
  • ​Order information:
    • Model: SM=single mode, MM=multi-mode 50/125um, MM=multi-mode 62.5/125um, OM2 50/125,OM3 50/125
    • Fiber type: S=Simplex,DX=Duplex,4 cores,6cores
    • Fiber diameter:Φ2.0,Φ3.0
    • Fiber length: 1.0,1.5,2.0, 3.0, 5.0 ,10.0m
    • Connector type: SC/UPC,SC/APC,LC/UPC,LC/APC,FC/UPC,FC/APC
