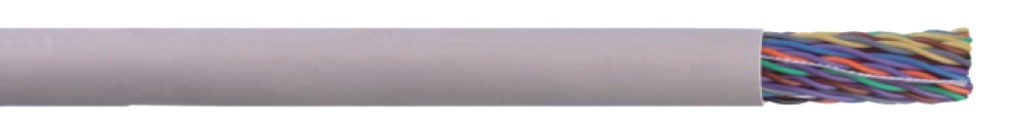

U/UTP CAT5 twisted 50pairs 24AWG
Standard:
ISO/IEC 11801
ANSI TIA/EIA 5688.2
Application:
10/100 base(IEEE802.3)
token ring(IEEE802.5)
1000 base-T(gigabit ethernet)
155/622 Mbps ATMpoe
Electrical characteristics:
impedance:4-100MHZ 100+/-15(ohms)
Max:conductor DC resistance 20C:8.4(ohms/100m)
resitance unblance(%):max2.5
pair-to ground capacitance unbalance:330(pf/100m)
transfer impedndance:max10 mohms/m@100Mhz
coupling attenuation:min 80 db
Product disciption:
bare copper conductor
HDPE insulation
rip cord:optional
rated temperature:60C,75C
Flammability grade:CMX,CM,CMG,CMR,LSZH
copper or CCA conductor availabe
jacket color:different color available
pack:305m,500m available
