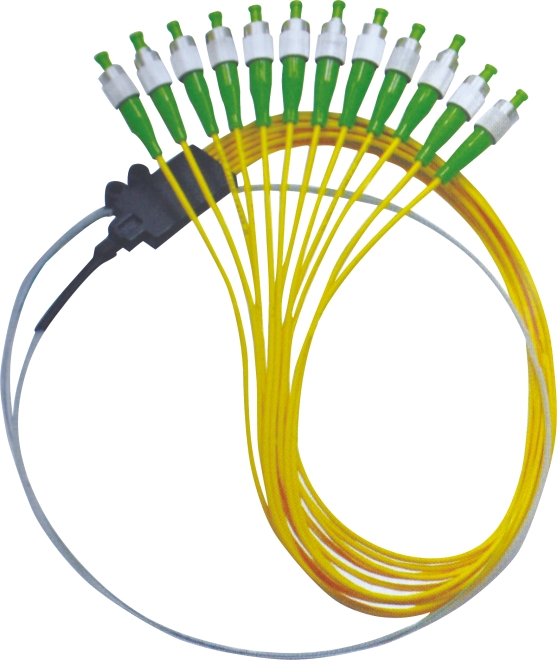

Ribbon pigtial

Ribbon pigtial
  • Model NO.: Ribbon pigtial

Ribbon pigtial
  • Specifications:
    • Insert loss: ≤0.3dB or ≤0.2dB
    • Return loss: PC≥40dB and APC≥60dB
    • Repeatability: ≤0.3dB or ≤0.2dB
    • Resistance (1000 times): ≤0.3dB or ≤0.2dB
    • Industry standards: -40 to 85°C
    • operation temperature:-40 to 85°C
    • Storage temperature: IEC, CR-326 and RoHS
  • ​Order information:
    • Model: SM=single mode, MM=multi-mode 50/125um, MM=multi-mode 62.5/125um, OM2 50/125 and OM3 50/125
    • Fiber type: 4 cores,6cores,8cores,12cores
    • Fiber diameter: Φ0.9, Φ2.0
    • Fiber length: 1.0, 1.5,2.0, 3.0, 5.0 and 10.0m
    • Connector type: SC/UPC,SC/APC,LC/UPC,LC/APC,FC/UPC,FC/APC
