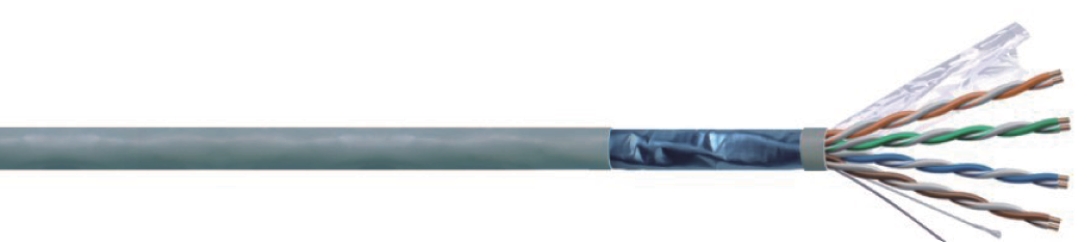

F/UTP Cat5e twissted pair lan cable 100028

F/UTP Cat5e 4PRS 24AWG strand

• Specifications
• Cat 5e LAN cable for internet connection
• UL, CE, RoHS Directive-compliant  ISO 9001 SGS certifications
• FLUKE DSP-4300 Pass
• UTP/FTP/SFTP
• Features:
  • TIA/EIA-568B.2-1
  • ISO/IEO 11801
  • Fire protection-IEC 60332-1 (CM, CMR and CMP)
  • Cable is used for indoor and outdoor installation

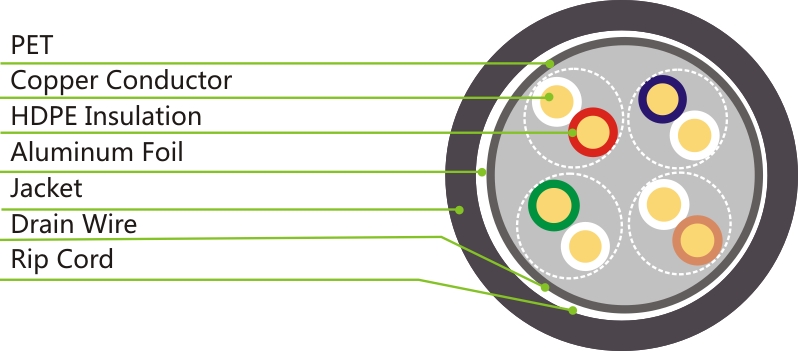

  • Technical characteristics:
  • Conductor: copper and CCA available
  • Conductor diameter: 24AWG
  • (0.40, 0.42, 0.45, 0.48 and 0.50mm available)
  • Pair insulation: polyethylene
• Pair identification:
  • Pair1= blue/white
  • Pair2= orange/white
  • Pair 3= green/white
  • Pair4= brown/white
• Outer jacket
• Indoor cable: PVC jacket
• Outdoor cable: PVC+PE jacket
• Conductor resistance at 20°C 9.38 Om/100m
• DC resistance unbalance 5%
• Capacitive unbalance pair to ground 330pF/100m
• Impedance 0.772-100MHz 85-115Ohm
• Maximum working capacity of 5.6nF/m
• External cable diameter of 5.1 ± 0.2mm
• Bending radius: 8xO during installation, 6xO with vertical
• Cabling, 4xO the horizontal cabling
• Standard packing: 18.5 x 37.5 x 36.5 cm (W x H x D) - 305m
• Weight without cable, weight: 9.7kg
• Cable weight with packing: 10.5kg
• Weight 1km of cable: 31.8kg
• Operating temperature: -20 to +75°C
• Fire: CM
• Standards: UL444/UL1581 and TIA/EIA 568B.2
• Installation temperature: 0 to +60°C
• Operating temperature: -20 to +75°C
• Pulling strength: 130N
• Minimum bend radius: 4 outer cable diameters
• Dielectric breakdown: 1000 Volts DC conductor to conductor
• Velocity of propagation: PE=65%
• Maximum skew: 45ns at 100 meter
