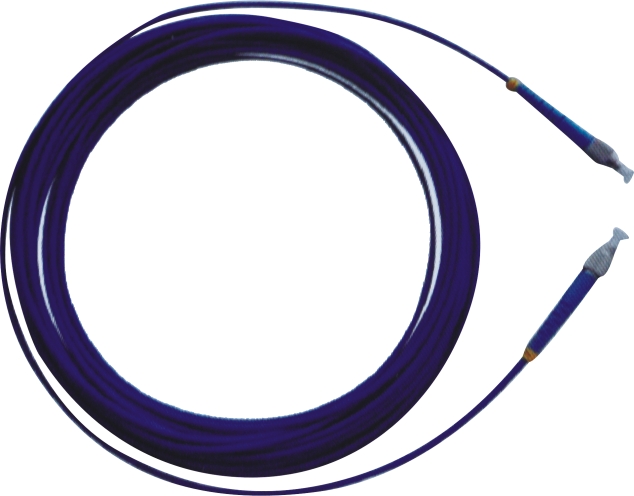

Armored fiber optic patchcord

Armored fiber optic patchcord
  • Model NO.: Armored

Armored fiber optic patchcord
  • Specifications:
    • Insert loss: ≤0.3dB or ≤0.2dB
    • Return loss: PC≥40dB and APC≥60dB
    • Repeatability: ≤0.3dB or ≤0.2dB
    • Resistance (1000 times): ≤0.3dB or ≤0.2dB
    • Industry standards: -40 to 85°CIEC, CR-326 and RoHS Directive-compliant
    • Storage temperature: IEC, CR-326 and RoHS
  • ​Order information:
    • Model: SM=single mode, MM=multi-mode 50/125um, MM=multi-mode 62.5/125um
    • Fiber type: SX=simplex, DX=duplex,4cores
    • Fiber diameter: Φ0.9, Φ2.0 and Φ3.0mm
    • Fiber length: 1.0, 5.0 and 10.0m
    • Connector type: SC/UPC,SC/APC LC/UPC,LC/APC FC/UPC,FC/APC
